ALTA

CONE STRAINERS

ALSO CALLED


WITCHES HAT
TEMPORARY
STARTUP


MATERIAL
  • 1/8 PERF MILD STEEL BASKET AND MILD STEEL RING IS STANDARD.
  • 304 STAINLESS STEEL IS ALSO AVAILABLE.
  • IF MESH LINER IS REQUESTED, THE STANDARD IS 40 MESH 304 SS.
  • MESH IS NORMALLY ON OUTSIDE OF BASKET.
  • UNLESS SPECIFIED BASKET WILL FIT SCH 40 OR SCH 80 PIPE.
  • STANDARD LENGTH “L” GIVES 150% OPEN AREA

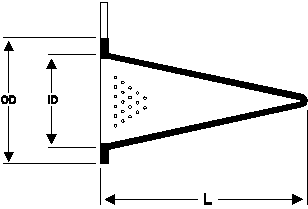

DIMENSIONS

L
O.D.
I.D.
150#
300#
600#
1 1/2
4
3 1/4
3 5/8
3 5/8
1 1/4
2
5 1/4
4
4 1/4
4 1/4
1 3/4
3
7
5 1/4
5 3/4
5 3/4
2 3/4
4
9 1/4
6 3/4
7
7 1/2
3 3/4
5
11
7 5/8
8 3/8
9 3/8
4 1/2
6
13
8 5/8
9 3/4
10 3/8
5 3/8
8
16
10 7/8
12
12 1/2
7 3/8
10
18 3/4
13 1/4
14 1/8
15 5/8
9 3/8
12
23
16
16 1/2
17 7/8
11
14
26
17 3/8
18 7/8
19
12 1/4
16
29
20 1/8
21
21 7/8
14
18
32 1/2
21 1/4
23 1/4
23 3/4
15 3/4
20
36
23 1/2
25 1/2
26 5/8
17 1/2
24
43
27 7/8
30 1/4
30 7/8
21 1/4

Return to top
ALTA

BASKET STRAINERS

ALSO CALLED


PILGRIM HAT TRUNCATED CONE


MATERIAL
  • 1/8 PERF MILD STEEL BASKET AND MILD STEEL RING IS STANDARD.
  • 304 STAINLESS STEEL IS ALSO AVAILABLE.
  • IF MESH LINER IS REQUESTED, THE STANDARD IS 40 MESH 304 SS.
  • MESH IS NORMALLY ON OUTSIDE OF BASKET.
  • UNLESS SPECIFIED BASKET WILL FIT SCH 40 OR SCH 80 PIPE.
  • STANDARD LENGTH “L” GIVES 150% OPEN AREA
DIMENSIONS

L
O.D.
I.D.
150#
300#
600#
1 1/2
2 1/4
3 1/4
3 5/8
3 5/8
1 1/4
2
2 3/4
4
4 1/4
4 1/4
1 3/4
3
3 3/4
5 1/4
5 3/4
5 3/4
2 3/4
4
5
6 3/4
7
7 1/2
3 3/4
6
6 3/4
8 5/8
9 3/4
10 3/8
5 3/8
8
8 1/2
10 7/8
12
12 1/2
7 3/8
10
10 1/2
13 1/4
14 1/8
15 5/8
9 3/8
12
12 1/4
16
16 1/2
17 7/8
11
14
13
17 3/8
18 7/8
19
12 1/4
16
14 1/2
20 1/8
21
21 7/8
14
18
16 1/2
21 1/4
23 1/4
23 3/4
15 3/4
20
19
23 1/2
25 1/2
26 5/8
17 1/2
24
22
27 7/8
30 1/4
30 7/8
21 1/4
